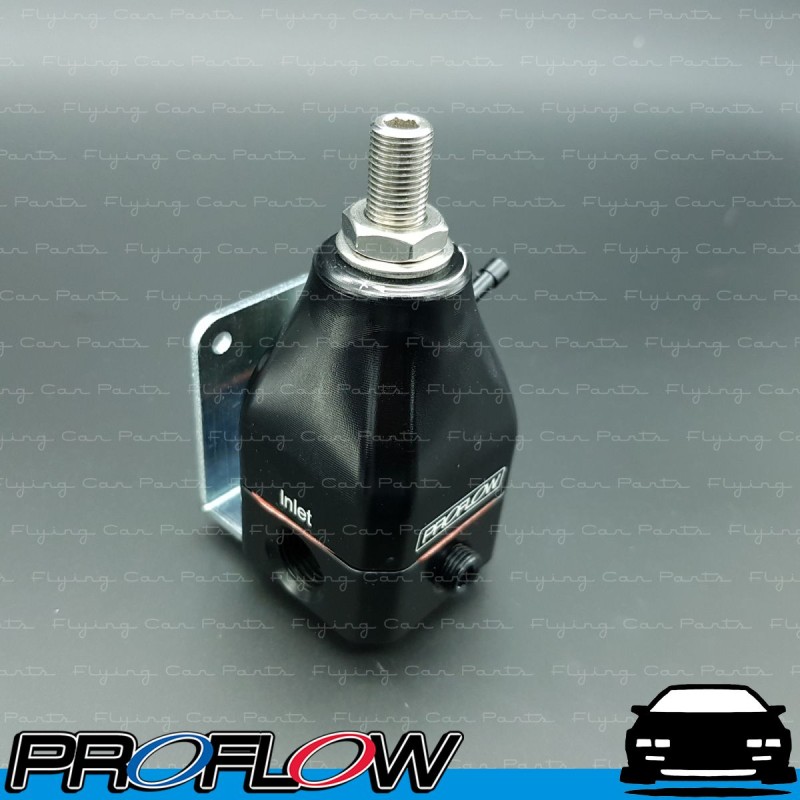

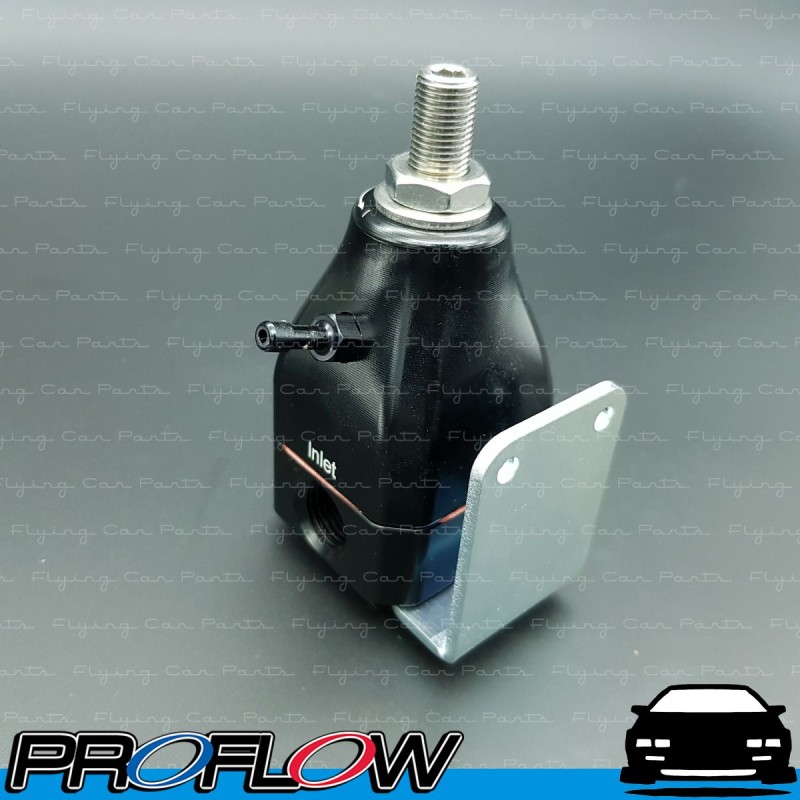

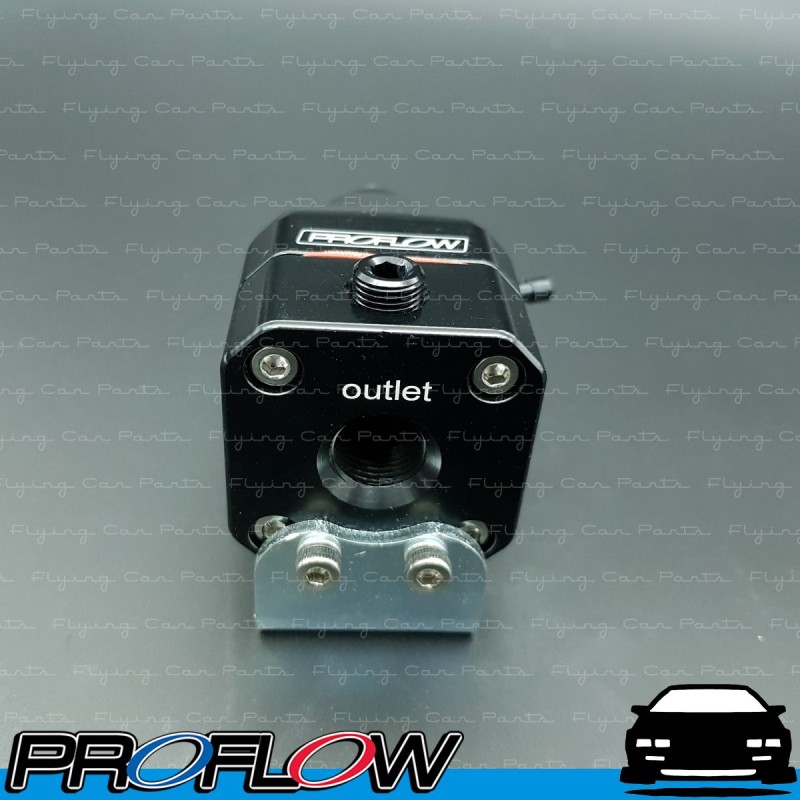

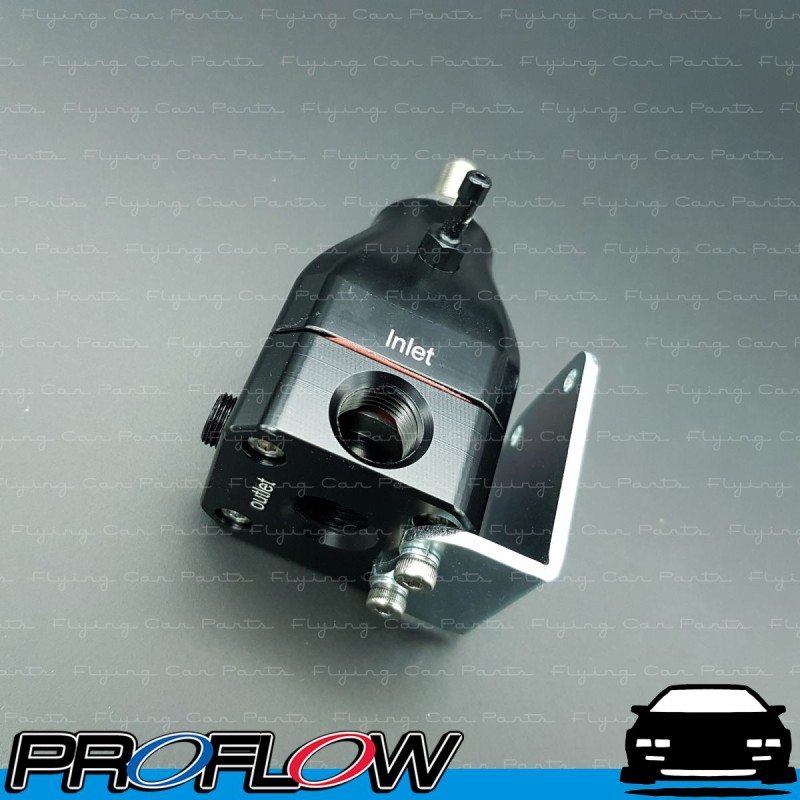

PROFLOW Adjustable 1:1 Fuel Pressure Regulator 3 Port AN -6 (6AN) 30-60psi EFI Fuel Injection
Brand:
Proflow
Part Number:
PFEFS13130
2 Available
More info
Pressure adjustable from 30 to 60PSI.
Fuel pressure rises on a 1:1 ratio with boost.
1/8" NPT gauge port.
2 x -6AN inlet ports and 1 x -6AN return port.
Note: Thread seleant must be used on the 1/8" NPT guage port fitting.
Fuel pressure rises on a 1:1 ratio with boost.
1/8" NPT gauge port.
2 x -6AN inlet ports and 1 x -6AN return port.
Note: Thread seleant must be used on the 1/8" NPT guage port fitting.
Specifications
| Inlet | 2 x AN -6 o-ring boss (ORB) |
| Outlet | 1 x AN -6 o-ring boss (ORB) |
| Operating pressure | 30-60psi |
| 1/8" NPT Gauge Ports | 1 |
